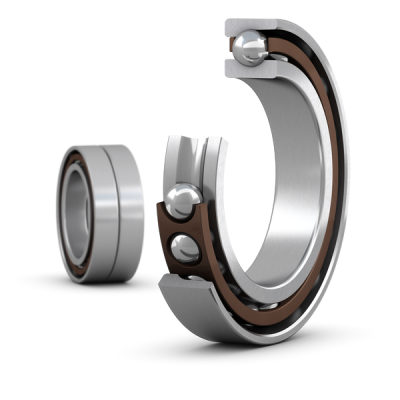

SKF 71905 ACD/P4ADGA
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
D
42.0 mm
Outside diameter
B
18.0 mm
Width
d1
30.6 mm
Shoulder diameter of inner ring (large side face)
d2
30.6 mm
Shoulder diameter of inner ring (small side face)
D1
36.4 mm
Shoulder diameter of outer ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.2 mm
Chamfer dimension
mass
0.086 kg
Product net weight
Abutment dimensions
da
27.0 mm
Diameter of shaft abutment
db
27.0 mm
Diameter of shaft abutment
Da
40.0 mm
Diameter of housing abutment
Db
40.6 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.2 mm
Radius of fillet
dn
31.8 mm
Position of oil nozzle
