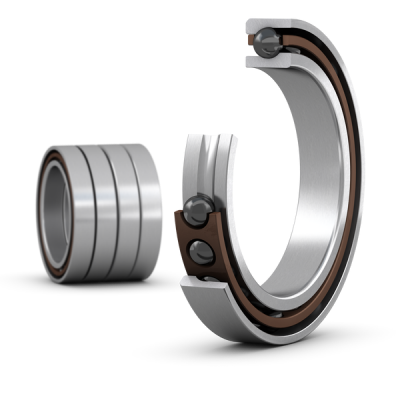

SKF 71906 CE/HCP4AQGA
Matched set of four super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
36.0 mm
Width
d1
35.8 mm
Shoulder diameter of inner ring (large side face)
d2
34.4 mm
Shoulder diameter of inner ring (small side face)
D1
41.39 mm
Shoulder diameter of outer ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.178 kg
Product net weight
Abutment dimensions
da
32.0 mm
Diameter of shaft abutment
db
32.0 mm
Diameter of shaft abutment
Da
45.0 mm
Diameter of housing abutment
Db
46.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
36.8 mm
Position of oil nozzle
