SKF 71906 FE/HCP4AHDT

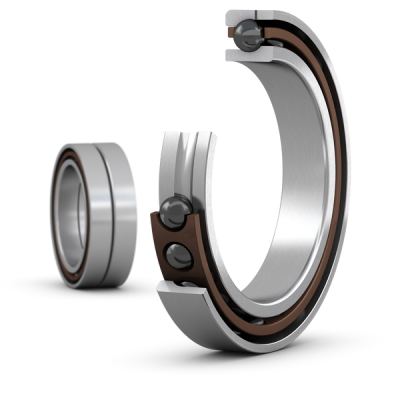

Matched set of two super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
18.0 mm
Width
d1
35.8 mm
Shoulder diameter of inner ring (large side face)
d2
34.4 mm
Shoulder diameter of inner ring (small side face)
D1
41.39 mm
Shoulder diameter of outer ring (large side face)
K
0.5 mm
Diameter of lubrication hole
C1
5.45 mm
Distance from outer ring side face to lubrication groove / lubrication hole
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.087 kg
Product net weight
Abutment dimensions
da
32.0 mm
Diameter of shaft abutment
db
32.0 mm
Diameter of shaft abutment
Da
45.0 mm
Diameter of housing abutment
Db
46.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
36.8 mm
Position of oil nozzle
