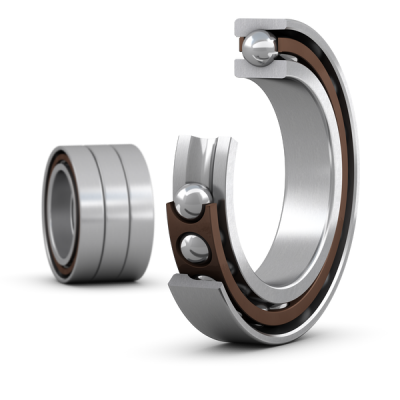

SKF 71908 ACD/P4ATGB
Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
36.0 mm
Width
d1
47.1 mm
Shoulder diameter of inner ring (large side face)
d2
47.1 mm
Shoulder diameter of inner ring (small side face)
D1
54.9 mm
Shoulder diameter of outer ring (large side face)
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.333 kg
Product net weight
Abutment dimensions
da
43.2 mm
Diameter of shaft abutment
db
43.2 mm
Diameter of shaft abutment
Da
58.8 mm
Diameter of housing abutment
Db
60.6 mm
Diameter of housing abutment
ra
0.6 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
dn
48.7 mm
Position of oil nozzle
