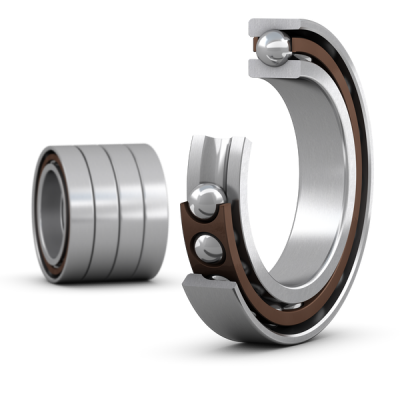

SKF 71915 CD/P4AQBCC
Matched set of four super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
105.0 mm
Outside diameter
B
64.0 mm
Width
d1
84.2 mm
Shoulder diameter of inner ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
1.4 kg
Product net weight
Abutment dimensions
da
79.6 mm
Diameter of shaft abutment
Db
103.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
dn
86.7 mm
Position of oil nozzle
