SKF 71916 CE/HCP4AQBCA

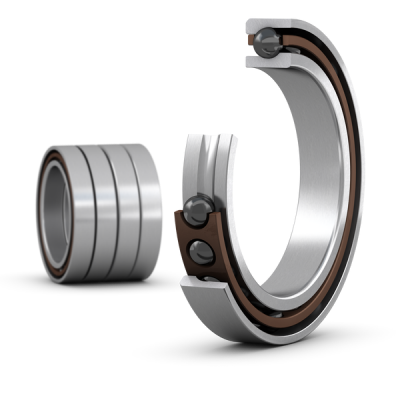

Matched set of four super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
64.0 mm
Width
d1
89.3 mm
Shoulder diameter of inner ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
1.19 kg
Product net weight
Abutment dimensions
da
84.6 mm
Diameter of shaft abutment
Db
108.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
dn
91.5 mm
Position of oil nozzle
