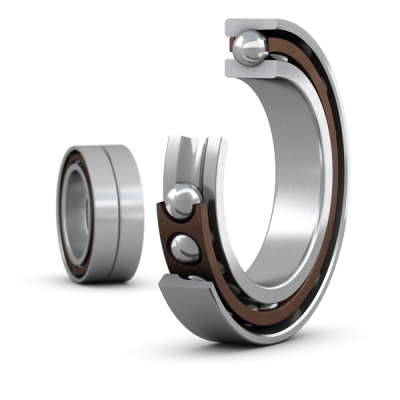

SKF 71924 CD/P4ADBA
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
165.0 mm
Outside diameter
B
44.0 mm
Width
d1
133.9 mm
Shoulder diameter of inner ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
2.33 kg
Product net weight
Abutment dimensions
da
126.0 mm
Diameter of shaft abutment
Db
161.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
137.6 mm
Position of oil nozzle
