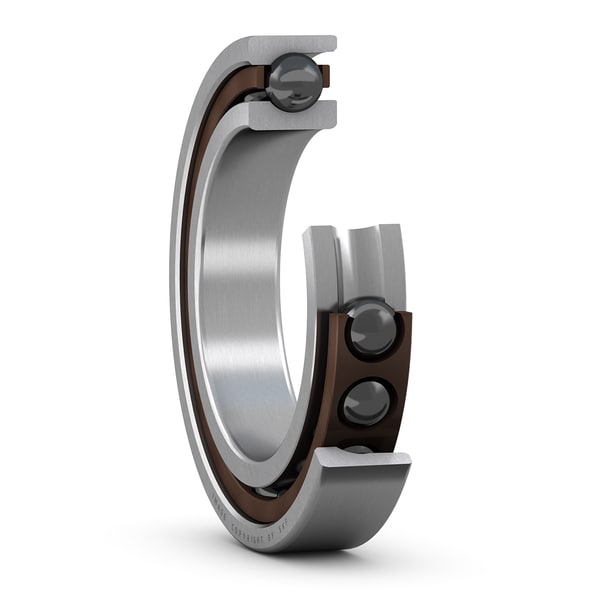

SKF 71928 CDGA/HCP4A
Super-precision, high-capacity, universally matchable single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
140.0 mm
Bore diameter
D
190.0 mm
Outside diameter
B
24.0 mm
Width
d1
155.4 mm
Shoulder diameter of inner ring (large side face)
d2
155.4 mm
Shoulder diameter of inner ring (small side face)
D1
174.6 mm
Shoulder diameter of outer ring (large side face)
r1,2
1.5 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
a
34.2 mm
Distance from side face to pressure point
mass
1.36 kg
Product net weight
Abutment dimensions
da
147.0 mm
Diameter of shaft abutment
db
147.0 mm
Diameter of shaft abutment
Da
183.0 mm
Diameter of housing abutment
Db
186.0 mm
Diameter of housing abutment
ra
1.5 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
159.5 mm
Position of oil nozzle
