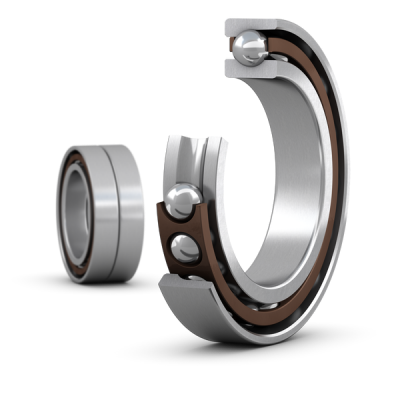

SKF 71934 CD/P4ADGA
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
170.0 mm
Bore diameter
D
230.0 mm
Outside diameter
B
56.0 mm
Width
d1
188.5 mm
Shoulder diameter of inner ring (large side face)
d2
188.5 mm
Shoulder diameter of inner ring (small side face)
D1
211.5 mm
Shoulder diameter of outer ring (large side face)
r1,2
2.0 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
mass
5.55 kg
Product net weight
Abutment dimensions
da
179.0 mm
Diameter of shaft abutment
db
179.0 mm
Diameter of shaft abutment
Da
221.0 mm
Diameter of housing abutment
Db
225.0 mm
Diameter of housing abutment
ra
2.0 mm
Radius of fillet
rb
1.0 mm
Radius of fillet
dn
193.5 mm
Position of oil nozzle
