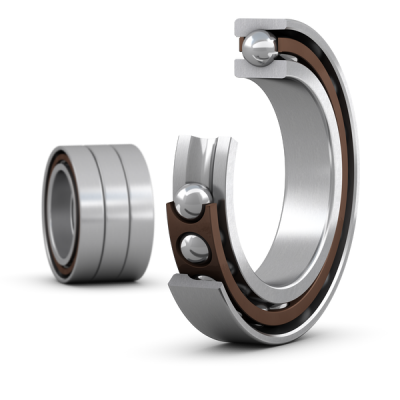

SKF 71940 ACD/P4ATBTB
Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
200.0 mm
Bore diameter
D
280.0 mm
Outside diameter
B
114.0 mm
Width
d1
224.7 mm
Shoulder diameter of inner ring (large side face)
r1,2
2.1 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
mass
18.1 kg
Product net weight
Abutment dimensions
da
211.0 mm
Diameter of shaft abutment
Db
275.0 mm
Diameter of housing abutment
ra
2.0 mm
Radius of fillet
rb
1.0 mm
Radius of fillet
dn
231.4 mm
Position of oil nozzle
