SKF 71952 ACD/P4ATBTB

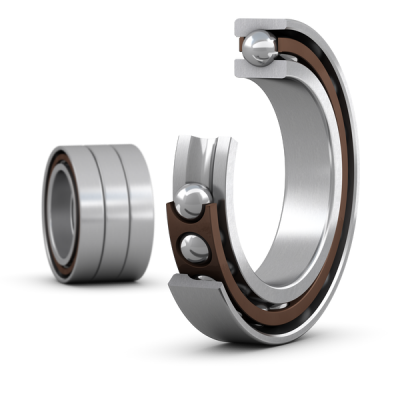

Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
360.0 mm
Outside diameter
B
138.0 mm
Width
d1
291.8 mm
Shoulder diameter of inner ring (large side face)
r1,2
2.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
mass
36.5 kg
Product net weight
Abutment dimensions
da
271.0 mm
Diameter of shaft abutment
Db
354.0 mm
Diameter of housing abutment
ra
2.0 mm
Radius of fillet
rb
1.0 mm
Radius of fillet
dn
299.7 mm
Position of oil nozzle
