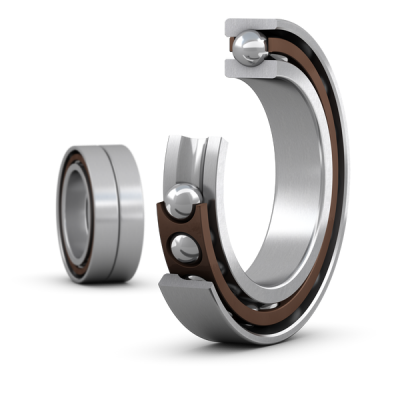

SKF 7202 CD/P4ADBB
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
15.0 mm
Bore diameter
D
35.0 mm
Outside diameter
B
22.0 mm
Width
d1
21.4 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.085 kg
Product net weight
Abutment dimensions
da
19.2 mm
Diameter of shaft abutment
Db
32.6 mm
Diameter of housing abutment
ra
0.6 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
dn
23.0 mm
Position of oil nozzle
