SKF 7204 ACD/P4ADGB

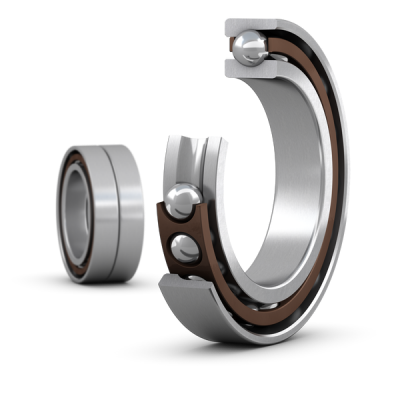

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
28.0 mm
Width
d1
29.1 mm
Shoulder diameter of inner ring (large side face)
d2
29.1 mm
Shoulder diameter of inner ring (small side face)
D1
38.7 mm
Shoulder diameter of outer ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.206 kg
Product net weight
Abutment dimensions
da
25.6 mm
Diameter of shaft abutment
db
25.6 mm
Diameter of shaft abutment
Da
41.4 mm
Diameter of housing abutment
Db
44.6 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
dn
31.1 mm
Position of oil nozzle
