SKF BC2B 320075/VJ202

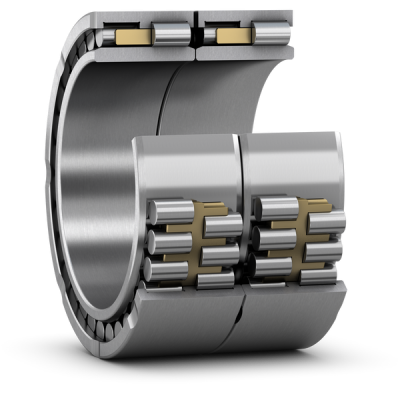

Four-row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
360.0 mm
Bore diameter
D
500.0 mm
Outside diameter
B
250.0 mm
Total bearing width over inner ring(s)
C
250.0 mm
Total bearing width over outer ring(s)
D1
461.2 mm
Outer ring shoulder diameter
F
394.0 mm
Raceway diameter inner ring
r1,2
3.0 mm
Corner radius/chamfer inner ring
r3,4
3.0 mm
Chamfer dimension on the outer ring
mass
143.0 kg
Product net weight
