SKF BC4-0103

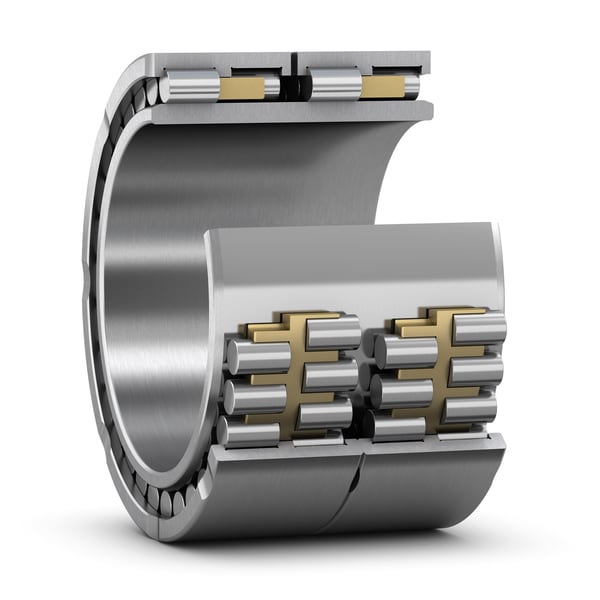

Four-row cylindrical roller bearing, for long products
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
160.0 mm
Bore diameter
D
230.0 mm
Outside diameter
B
168.0 mm
Total bearing width over inner ring(s)
C
168.0 mm
Total bearing width over outer ring(s)
D1
203.9 mm
Outer ring shoulder diameter
F
179.0 mm
Raceway diameter inner ring
r1,2
2.0 mm
Corner radius/chamfer inner ring
r3,4
2.0 mm
Chamfer dimension on the outer ring
s
3.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
mass
23.3 kg
Product net weight
