SKF BC4-0111

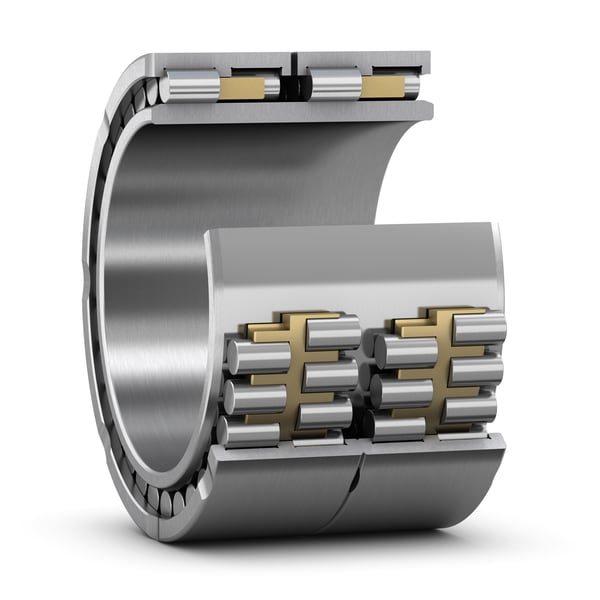

Four-row cylindrical roller bearing, for long products
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
165.1 mm
Bore diameter
D
225.45 mm
Outside diameter
B
168.3 mm
Total bearing width over inner ring(s)
C
168.3 mm
Total bearing width over outer ring(s)
D1
205.0 mm
Outer ring shoulder diameter
F
181.0 mm
Raceway diameter inner ring
r1,2
1.5 mm
Corner radius/chamfer inner ring
r3,4
1.5 mm
Chamfer dimension on the outer ring
s
1.2 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
mass
20.0 kg
Product net weight
