SKF BC4B 322264/HB1

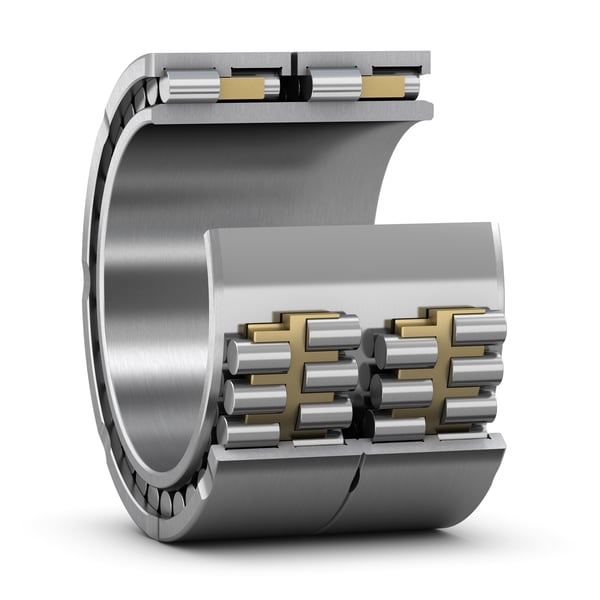

Four-row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
380.0 mm
Bore diameter
D
560.0 mm
Outside diameter
B
325.0 mm
Total bearing width over inner ring(s)
C
325.0 mm
Total bearing width over outer ring(s)
D1
508.0 mm
Outer ring shoulder diameter
F
428.0 mm
Raceway diameter inner ring
r1,2
13.0 mm
Corner radius/chamfer inner ring
α
20.0 °
Chamfer angle inner ring
r3,4
5.0 mm
Chamfer dimension on the outer ring
mass
265.0 kg
Product net weight
