SKF BC4B 326853/HB1

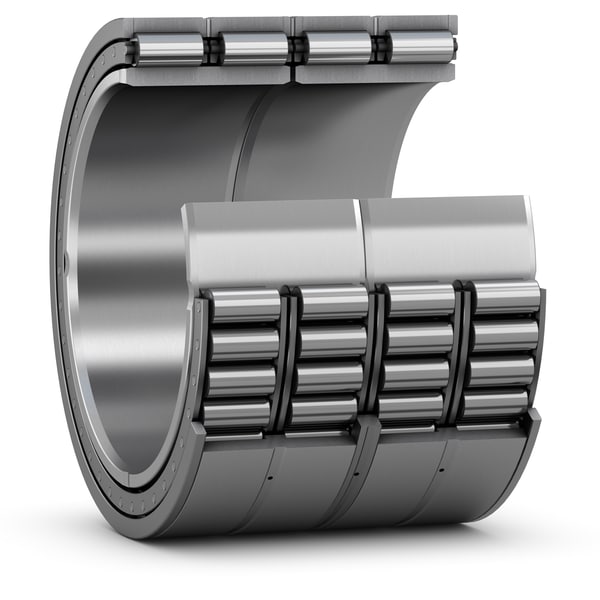

Four-row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
500.0 mm
Bore diameter
D
738.0 mm
Outside diameter
B
500.0 mm
Total bearing width over inner ring(s)
C
500.0 mm
Total bearing width over outer ring(s)
D1
669.9 mm
Bore diameter loose flange ring
F
556.0 mm
Raceway diameter inner ring
b
22.3 mm
Width of annular groove
K
12.0 mm
Diameter lubrication hole (outer ring)
r1,2
10.5 mm
Corner radius/chamfer inner ring
α
20.0 °
Chamfer angle inner ring
r3,4
4.0 mm
Chamfer dimension on the outer ring
mass
737.0 kg
Product net weight
