SKF BT2B 328035/HA1

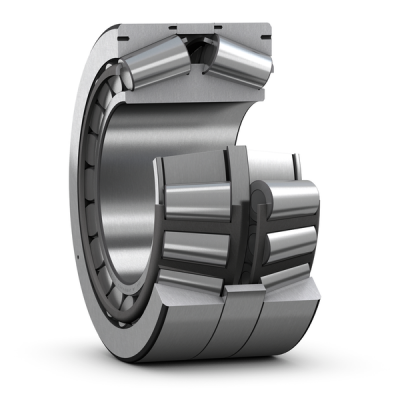

Double row tapered roller bearing, TDI design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
385.762 mm
Bore diameter
D
514.35 mm
Outside diameter
T
152.4 mm
Total width
B
152.4 mm
Width of inner ring
d1
411.6 mm
Shoulder diameter of inner ring (small side face)
D1
459.455 mm
Raceway diameter of outer ring (small side face)
r1,2
3.3 mm
Chamfer dimension of inner ring
r3,4
3.3 mm
Chamfer dimension of outer ring
mass
92.1 kg
Product net weight
