SKF BT2B 332913/HB1

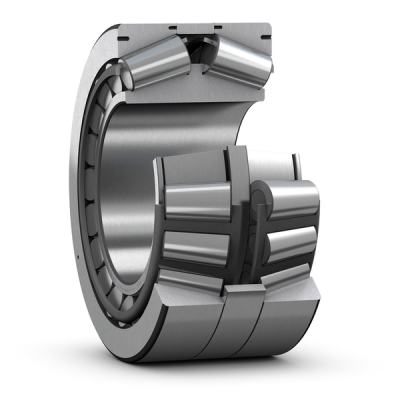

Double row tapered roller bearing, TDI design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
346.075 mm
Bore diameter
D
488.95 mm
Outside diameter
T
104.775 mm
Total width
B
95.25 mm
Width of inner ring
d1
390.2 mm
Shoulder diameter of inner ring (small side face)
D1
428.14 mm
Raceway diameter of outer ring (small side face)
r1,2
1.5 mm
Chamfer dimension of inner ring
r3,4
6.4 mm
Chamfer dimension of outer ring
mass
61.8 kg
Product net weight
