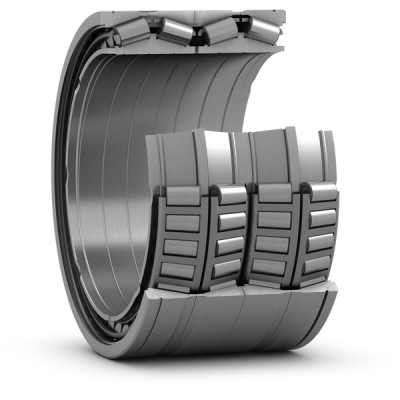

SKF BT4-0004 G/HA1
Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
304.902 mm
Bore diameter
D
412.648 mm
Outside diameter
B
266.7 mm
Total bearing width over inner rings
T
266.7 mm
Total bearing width over outer rings
d1
326.0 mm
Abutment diameter shaft
D1
379.0 mm
Abutment diameter housing
r1,2
3.3 mm
Chamfer dimension inner ring
r3,4
3.3 mm
Outer ring radius (chamfer)
mass
102.0 kg
Product net weight
