SKF BT4-8113 E2/C500

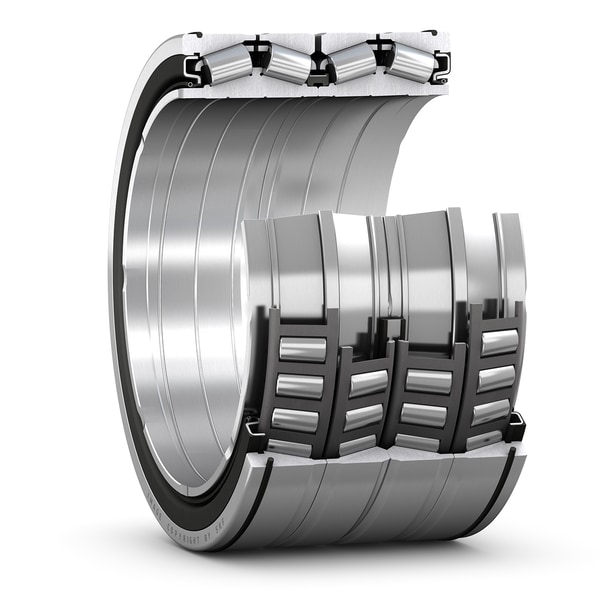

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
330.302 mm
Bore diameter
D
438.023 mm
Outside diameter
B
247.65 mm
Total bearing width over inner rings
T
254.0 mm
Total bearing width over outer rings
d1
345.0 mm
Abutment diameter shaft
D1
405.0 mm
Abutment diameter housing
r1,2
1.0 mm
Chamfer dimension inner ring
r3,4
3.3 mm
Outer ring radius (chamfer)
mass
96.5 kg
Product net weight
