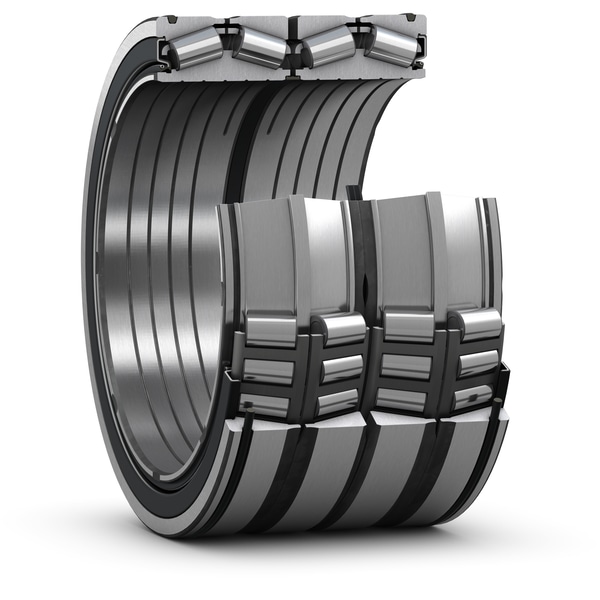

SKF BT4-8167 E91/C775
Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
510.0 mm
Bore diameter
D
655.0 mm
Outside diameter
B
377.0 mm
Total bearing width over inner rings
T
379.0 mm
Total bearing width over outer rings
d1
530.0 mm
Abutment diameter shaft
D1
601.5 mm
Abutment diameter housing
r1,2
2.5 mm
Chamfer dimension inner ring
r3,4
6.0 mm
Outer ring radius (chamfer)
mass
307.0 kg
Product net weight
