SKF BT4B 328871 G/HA1VA901

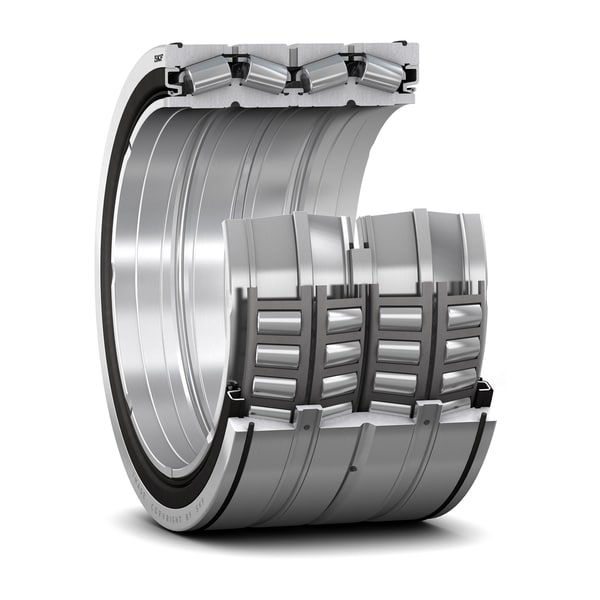

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
609.6 mm
Bore diameter
D
787.4 mm
Outside diameter
B
361.95 mm
Total bearing width over inner rings
T
361.95 mm
Total bearing width over outer rings
d1
645.0 mm
Abutment diameter shaft
D1
735.0 mm
Abutment diameter housing
r1,2
3.3 mm
Chamfer dimension inner ring
r3,4
6.4 mm
Outer ring radius (chamfer)
mass
428.0 kg
Product net weight
