SKF BT4B 330993 AG/HA1

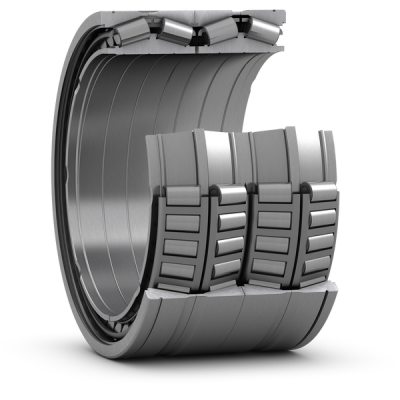

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
558.8 mm
Bore diameter
D
736.6 mm
Outside diameter
B
409.575 mm
Total bearing width over inner rings
T
409.575 mm
Total bearing width over outer rings
d1
594.0 mm
Abutment diameter shaft
D1
672.0 mm
Abutment diameter housing
r1,2
3.3 mm
Chamfer dimension inner ring
r3,4
6.4 mm
Outer ring radius (chamfer)
mass
480.0 kg
Product net weight
