SKF DTW-10500-J2G

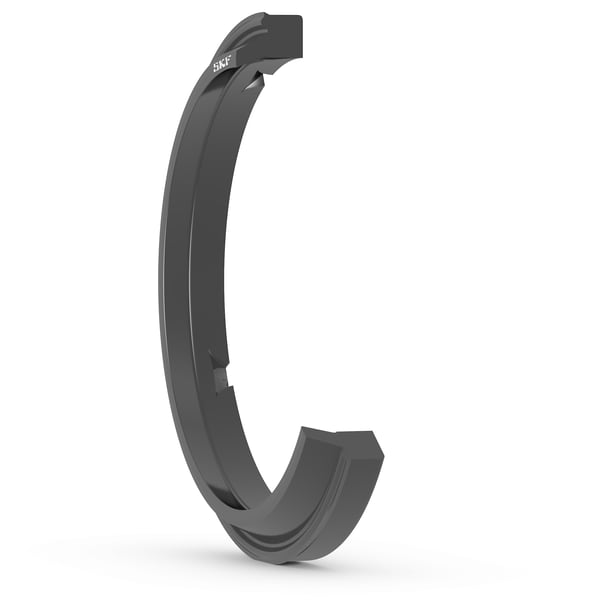

Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
266.7 mm
Rod diameter
D
292.02 mm
Housing groove diameter
D2
283.44 mm
Housing shoulder diameter
L
12.67 mm
Housing groove width
S
12.66 mm
Radial depth
R
0.64 mm
Groove radius
C
12.7 mm
Lead-in chamfer length on rod
mass
0.186 kg
Product net weight
