SKF DTW-1250-J2G

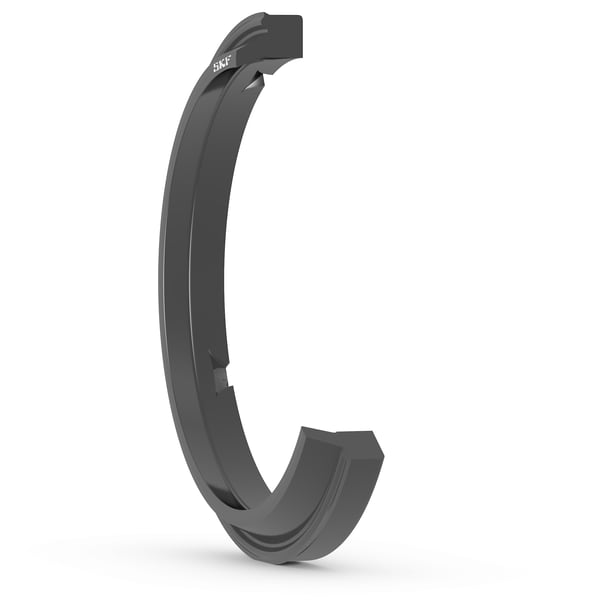

Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
Dimensions
SKF DTW-1250-J2G Wiper Seal Introduction
The DTW-1250-J2G is an SKF wiper seal in the Wiper seals product series. It is described as a polyurethane snap-in wiper seal with a single lip, two additional static lips, and notches on the inside edge.
What type of seal is the DTW-1250-J2G?
The DTW-1250-J2G is classified under Brand > SKF > Seals > Hydraulic seals > Wiper seals and belongs to the SKF Wiper seals series.
DTW-1250-J2G Design and Material
The seal features a snap-in design, a single lip, two additional static lips, and notches on the inside edge. The supplied material information identifies the seal material as Polyurethane (TPU U-1003).
What material is specified for this wiper seal?
The supplied product data lists the material as Polyurethane (TPU U-1003). No additional material claims are included in the product data.
DTW-1250-J2G Supplied Dimensions and Mass
- d / Rod diameter: 31.75 mm
- D: 41.2 mm
- Housing groove diameter D2: 37.97 mm
- Housing shoulder diameter L: 4.75 mm
- Housing groove width S: 4.72 mm
- Radial depth R: 0.64 mm
- Groove radius C: 4.75 mm
- Product net weight: 0.0035 kg
What measurements are provided in the product data?
The supplied dimensions are 31.75 mm rod diameter, 41.2 mm D, 37.97 mm housing groove diameter D2, 4.75 mm housing shoulder diameter L, 4.72 mm housing groove width S, 0.64 mm radial depth R, and 4.75 mm groove radius C. The listed product net weight is 0.0035 kg.
