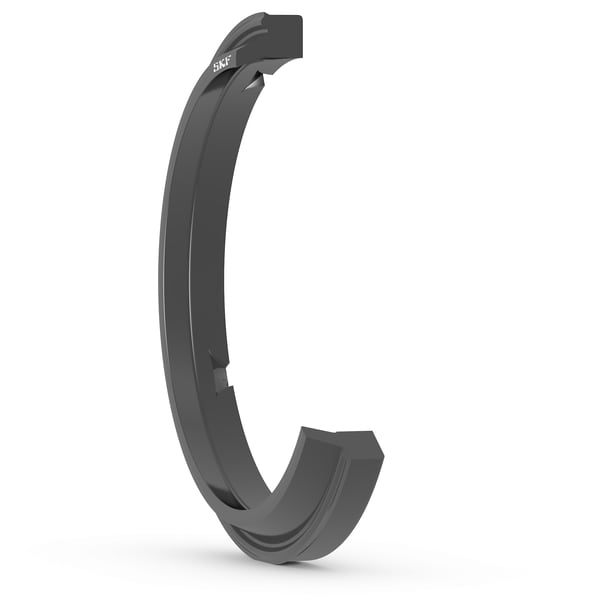

SKF DTW-145X158X8-J2G
Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
145.0 mm
Rod diameter
D
158.0 mm
Housing groove diameter
D2
151.5 mm
Housing shoulder diameter
L
8.0 mm
Housing groove width
S
6.5 mm
Radial depth
R
0.3 mm
Groove radius
C
5.5 mm
Lead-in chamfer length on rod
mass
0.0299 kg
Product net weight
