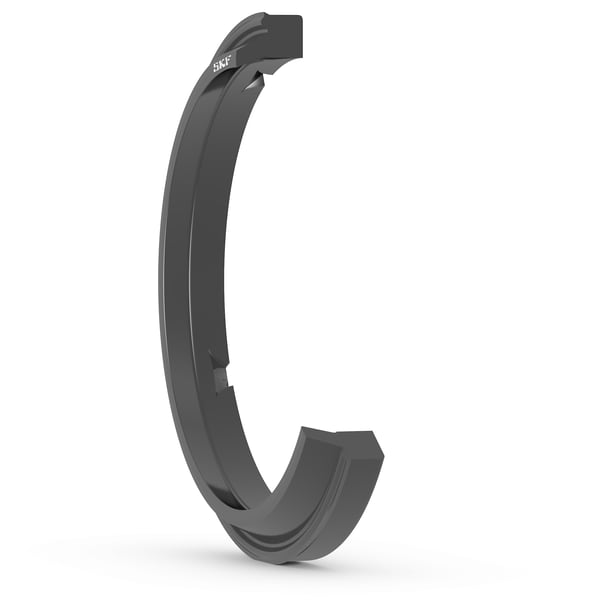

SKF DTW-30X38X6-J2G
Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Rod diameter
D
38.0 mm
Housing groove diameter
D2
34.0 mm
Housing shoulder diameter
L
6.0 mm
Housing groove width
S
4.0 mm
Radial depth
C
4.5 mm
Lead-in chamfer length on rod
R
0.3 mm
Groove radius
mass
0.0025 kg
Product net weight
