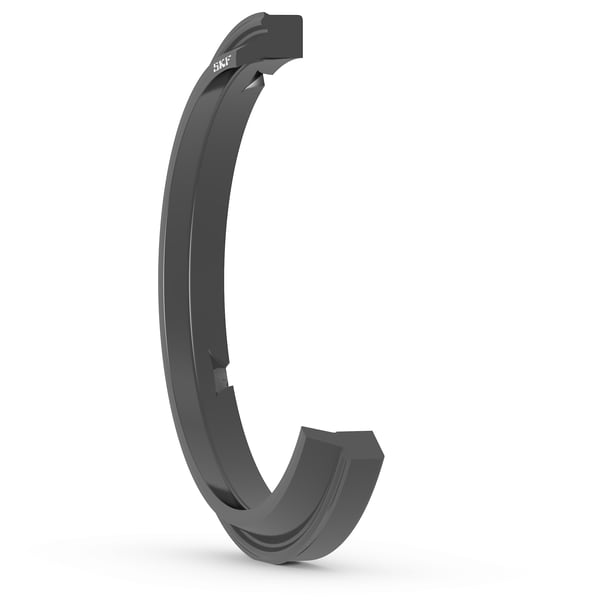

SKF DTW-3625-J2G
Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
92.08 mm
Rod diameter
D
104.7 mm
Housing groove diameter
D2
100.38 mm
Housing shoulder diameter
L
6.32 mm
Housing groove width
S
6.31 mm
Radial depth
R
0.64 mm
Groove radius
C
6.35 mm
Lead-in chamfer length on rod
mass
0.0168 kg
Product net weight
