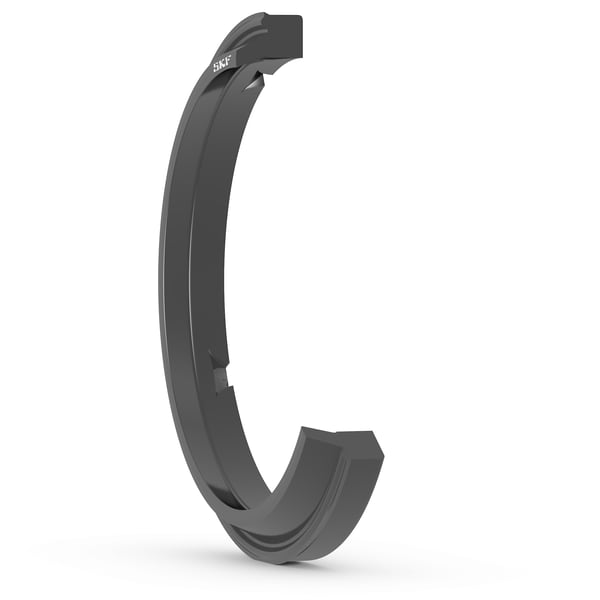

SKF DTW-4125-J2G
Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
104.78 mm
Rod diameter
D
117.4 mm
Housing groove diameter
D2
113.08 mm
Housing shoulder diameter
L
6.32 mm
Housing groove width
S
6.31 mm
Radial depth
R
0.64 mm
Groove radius
C
6.35 mm
Lead-in chamfer length on rod
mass
0.0178 kg
Product net weight
