SKF DTW-4750-J2G

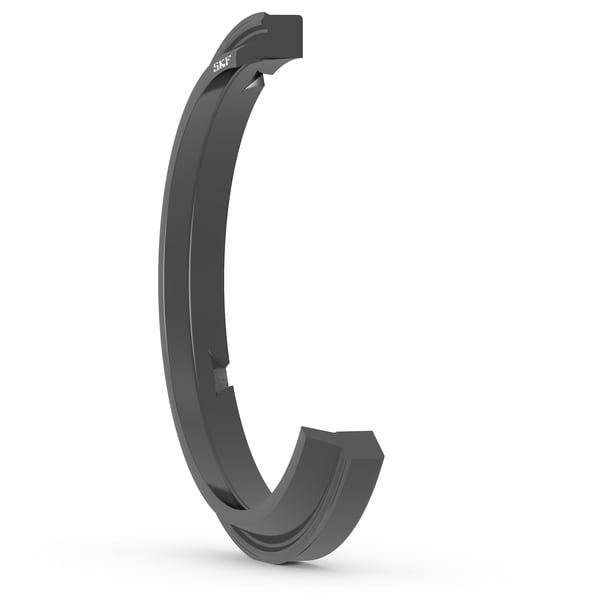

Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.65 mm
Rod diameter
D
139.62 mm
Housing groove diameter
D2
133.17 mm
Housing shoulder diameter
L
9.5 mm
Housing groove width
S
9.49 mm
Radial depth
R
0.64 mm
Groove radius
C
9.53 mm
Lead-in chamfer length on rod
mass
0.0483 kg
Product net weight
