SKF DTW-750-J2G

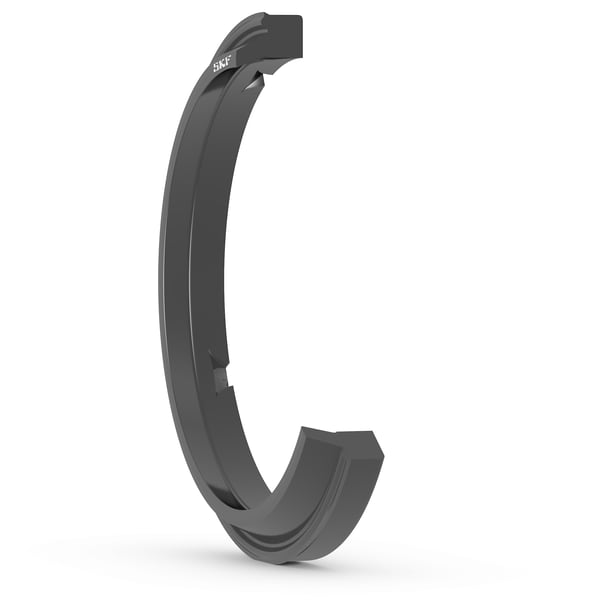

Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
19.05 mm
Rod diameter
D
28.5 mm
Housing groove diameter
D2
25.27 mm
Housing shoulder diameter
L
4.75 mm
Housing groove width
S
4.72 mm
Radial depth
C
4.75 mm
Lead-in chamfer length on rod
R
0.64 mm
Groove radius
mass
0.0022 kg
Product net weight
SKF DTW-750-J2G Wiper Seal Introduction
What is the DTW-750-J2G?
The SKF DTW-750-J2G is part of the SKF Wiper seals series within the hydraulic seals category. It is described as a polyurethane snap-in wiper seal with a single lip, two additional static lips, and notches on the inside edge.
DTW-750-J2G Dimensions and Weight
What dimensions are provided for this wiper seal?
- Rod diameter (d): 19.05 mm
- Outside diameter (D): 28.5 mm
- Housing groove diameter (D2): 25.27 mm
- Housing shoulder diameter (L): 4.75 mm
- Housing groove width (S): 4.72 mm
- Radial depth (C): 4.75 mm
- Lead-in chamfer length on rod (R): 0.64 mm
- Product net weight: 0.0022 kg
DTW-750-J2G Material and Design Features
What material and seal features are identified?
The supplied data identifies the material as Polyurethane (TPU U-1003). The seal design includes a single lip, two additional static lips, and inside-edge notches. Its snap-in form and stated dimensions should be checked against the intended housing and rod requirements before selection.
