SKF DZR500-11000-750-E2D

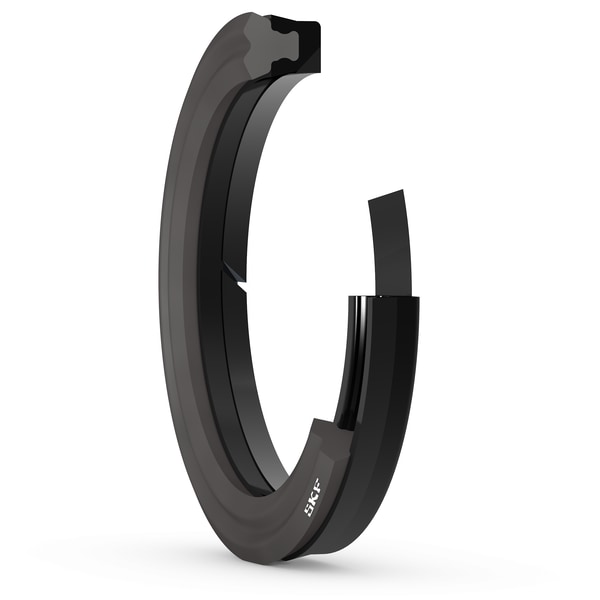

Hydraulic rod seal, with primary and secondary sealing rings and integrated anti-extrusion ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
279.4 mm
Rod diameter
D
304.8 mm
Housing groove diameter
L
20.96 mm
Housing groove width
S
12.7 mm
Radial depth
R
0.76 mm
Groove radius
C
15.88 mm
Lead-in chamfer length
mass
0.253 kg
Product net weight
