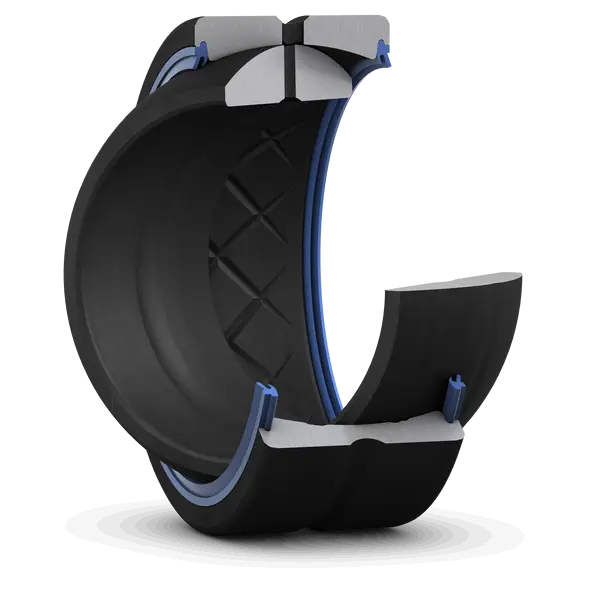

SKF GE 140 ESL-2RS
Radial spherical plain bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
140.0 mm
Bore diameter
D
210.0 mm
Outside diameter
B
90.0 mm
Width
C
70.0 mm
Width outer ring
α
7.0 °
Angle of tilt
dk
180.0 mm
Raceway diameter inner ring
b
13.5 mm
Width annular lubrication groove at outer ring
b1
13.5 mm
Width annular lubrication groove at inner ring
M
6.0 mm
Diameter lubrication hole (outer ring)
r1
1.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
10.7 kg
Product net weight
