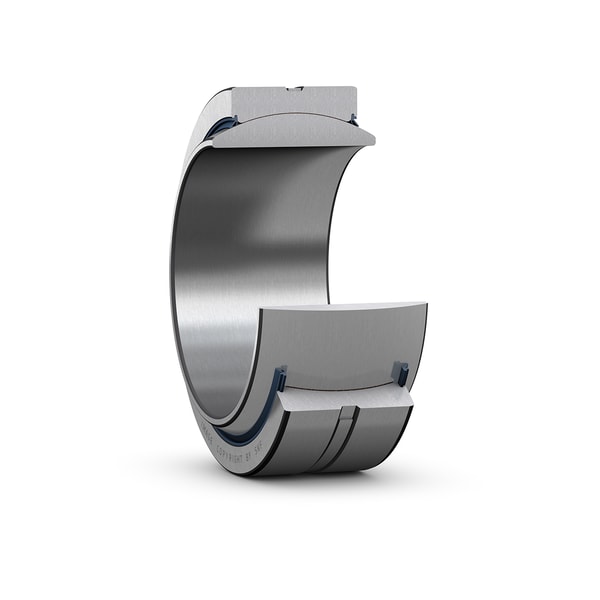

SKF GE 140 TXG3A-2RS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
140.0 mm
Bore diameter
D
210.0 mm
Outside diameter
B
90.0 mm
Width
C
70.0 mm
Width outer ring
α
7.0 °
Angle of tilt
dk
180.0 mm
Raceway diameter inner ring
r1
1.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
10.9 kg
Product net weight
