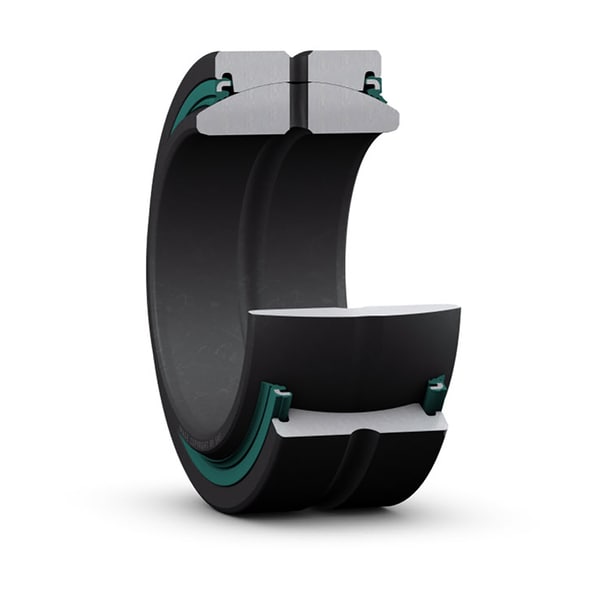

SKF GE 180 ESX-2LS
SKF Explorer radial spherical plain bearing, virtually maintenance-free, sealed, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
180.0 mm
Bore diameter
D
260.0 mm
Outside diameter
B
105.0 mm
Width
C
80.0 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
225.0 mm
Raceway diameter inner ring
b
13.5 mm
Width annular lubrication groove at outer ring
b1
13.5 mm
Width annular lubrication groove at inner ring
M
6.0 mm
Diameter lubrication hole (outer ring)
r1
1.1 mm
Chamfer dimension bore
r2
1.1 mm
Chamfer dimension outer ring
mass
18.5 kg
Product net weight
