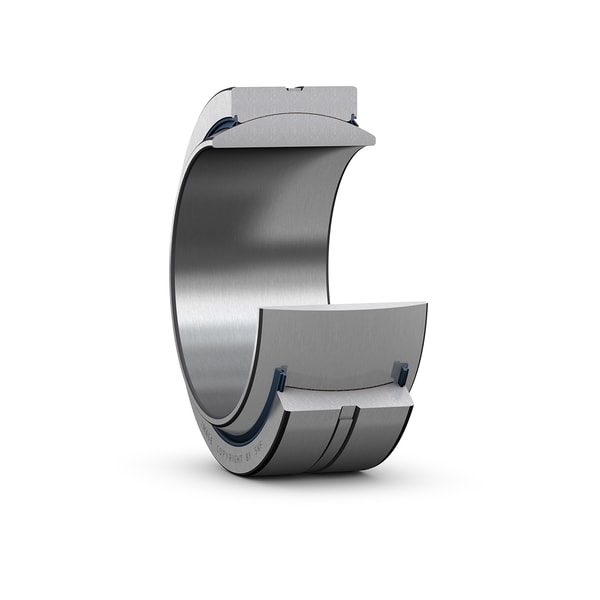

SKF GE 300 TXA-2RS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
300.0 mm
Bore diameter
D
430.0 mm
Outside diameter
B
165.0 mm
Width
C
120.0 mm
Width outer ring
α
7.0 °
Angle of tilt
dk
375.0 mm
Raceway diameter inner ring
r1
1.1 mm
Chamfer dimension bore
r2
1.1 mm
Chamfer dimension outer ring
mass
72.0 kg
Product net weight
