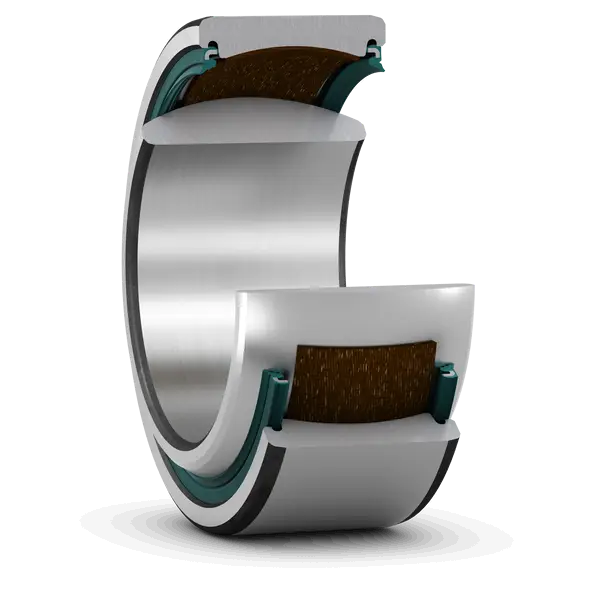

SKF GE 45 TXE-2LS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
68.0 mm
Outside diameter
B
32.0 mm
Width
C
25.0 mm
Width outer ring
α
7.0 °
Angle of tilt
dk
60.0 mm
Raceway diameter inner ring
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.392 kg
Product net weight
