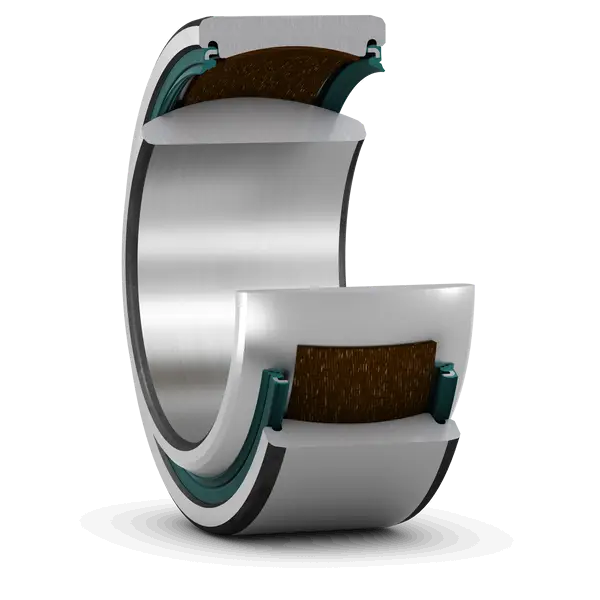

SKF GE 70 TXE-2LS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Bore diameter
D
105.0 mm
Outside diameter
B
49.0 mm
Width
C
40.0 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
92.0 mm
Raceway diameter inner ring
r1
1.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
1.49 kg
Product net weight
