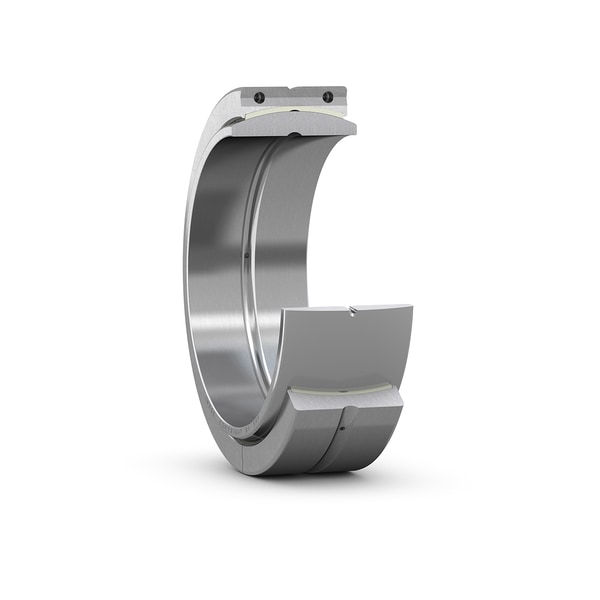

SKF GEC 1000 FBAS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
1000.0 mm
Bore diameter
D
1320.0 mm
Outside diameter
B
438.0 mm
Width
C
370.0 mm
Width outer ring
α
3.0 °
Angle of tilt
dk
1160.0 mm
Raceway diameter inner ring
b
40.0 mm
Width annular lubrication groove at outer ring
b1
40.5 mm
Width annular lubrication groove at inner ring
M
15.0 mm
Diameter lubrication hole (outer ring)
r1
4.0 mm
Chamfer dimension bore
r2
7.5 mm
Chamfer dimension outer ring
mass
1653.0 kg
Product net weight
