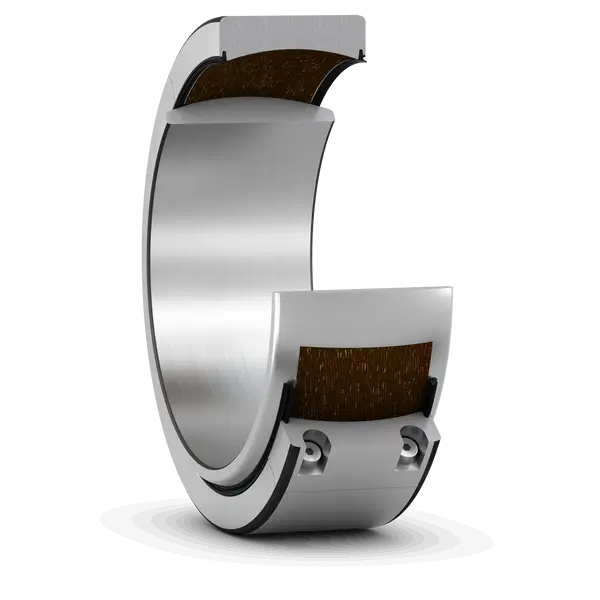

SKF GEC 480 TXA-2RS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
480.0 mm
Bore diameter
D
650.0 mm
Outside diameter
B
230.0 mm
Width
C
195.0 mm
Width outer ring
α
3.0 °
Angle of tilt
dk
565.0 mm
Raceway diameter inner ring
r1
2.0 mm
Chamfer dimension bore
r2
5.0 mm
Chamfer dimension outer ring
mass
233.0 kg
Product net weight
