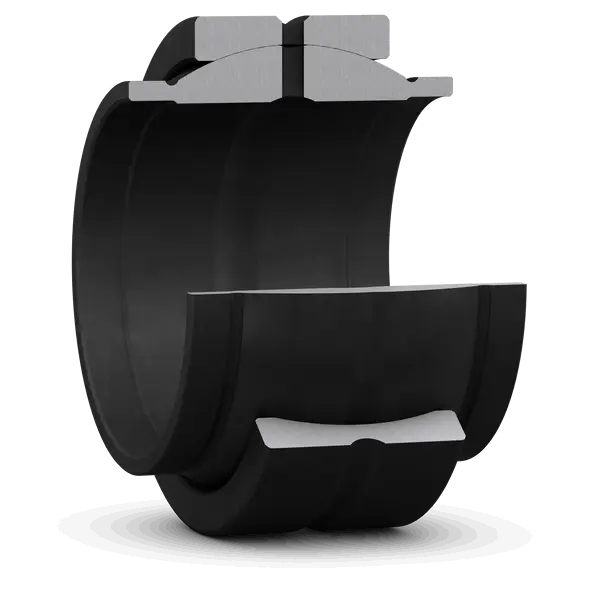

SKF GEG 160 ES
Radial spherical plain bearing, requiring maintenance, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
160.0 mm
Bore diameter
D
230.0 mm
Outside diameter
B
160.0 mm
Width
C
80.0 mm
Width outer ring
α
4.0 °
Angle of tilt
dk
200.0 mm
Raceway diameter inner ring
d1
177.0 mm
Shoulder diameter cylindrical extension inner ring
b
13.5 mm
Width annular lubrication groove at outer ring
b1
13.5 mm
Width annular lubrication groove at inner ring
M
6.0 mm
Diameter lubrication hole (outer ring)
r1
1.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
15.5 kg
Product net weight
