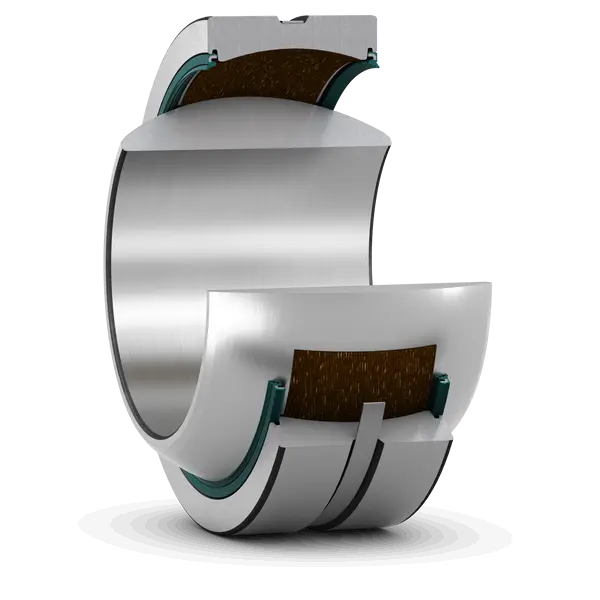

SKF GEH 100 TXG3A-2LS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
100.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
85.0 mm
Width
C
55.0 mm
Width outer ring
α
13.0 °
Angle of tilt
dk
140.0 mm
Raceway diameter inner ring
r1
1.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
5.9 kg
Product net weight
