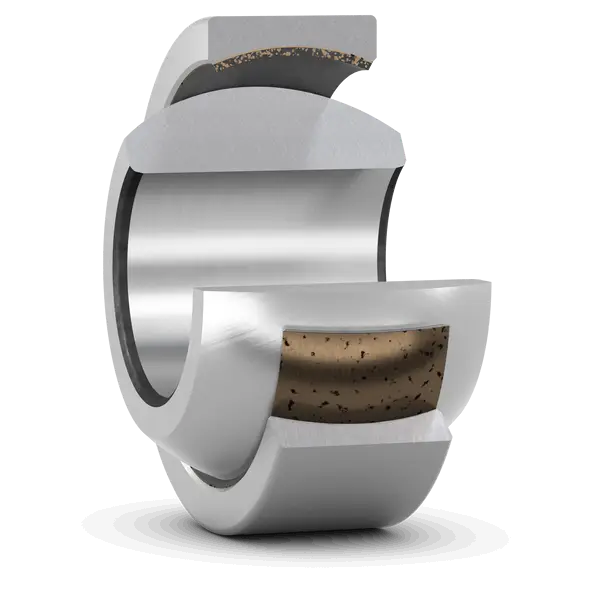

SKF GEH 17 C
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
17.0 mm
Bore diameter
D
35.0 mm
Outside diameter
B
20.0 mm
Width
C
12.0 mm
Width outer ring
α
19.0 °
Angle of tilt
dk
29.0 mm
Raceway diameter inner ring
r1
0.3 mm
Chamfer dimension bore
r2
0.3 mm
Chamfer dimension outer ring
mass
0.0808 kg
Product net weight
