SKF GEH 20 C

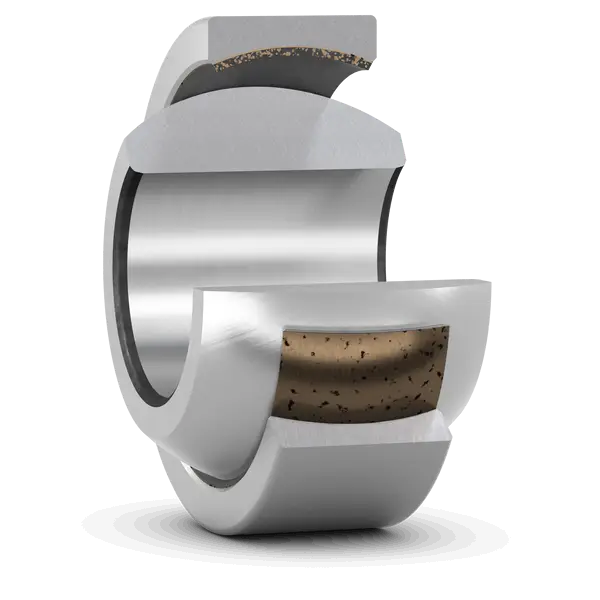

Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
20.0 mm
Bore diameter
D
42.0 mm
Outside diameter
B
25.0 mm
Width
C
16.0 mm
Width outer ring
α
17.0 °
Angle of tilt
dk
35.5 mm
Raceway diameter inner ring
r1
0.3 mm
Chamfer dimension bore
r2
0.6 mm
Chamfer dimension outer ring
mass
0.154 kg
Product net weight
