SKF GEH 20 ESX-2LS

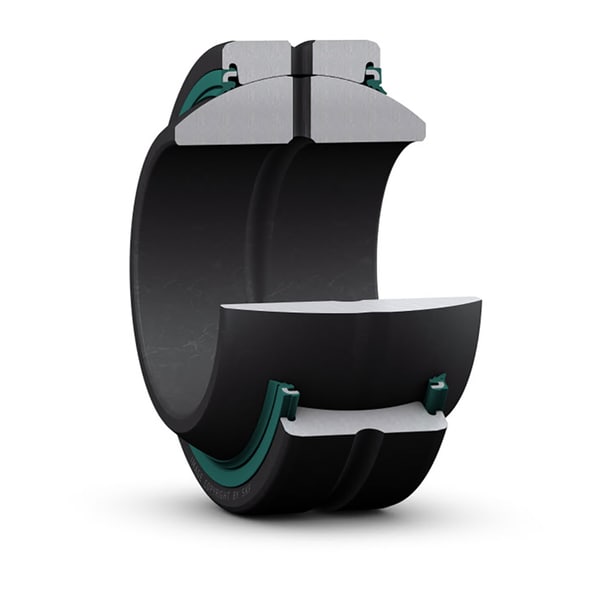

SKF Explorer radial spherical plain bearing, virtually maintenance-free, sealed, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
20.0 mm
Bore diameter
D
42.0 mm
Outside diameter
B
25.0 mm
Width
C
16.0 mm
Width outer ring
α
17.0 °
Angle of tilt
dk
35.5 mm
Raceway diameter inner ring
b
3.1 mm
Width annular lubrication groove at outer ring
b1
3.2 mm
Width annular lubrication groove at inner ring
M
2.0 mm
Diameter lubrication hole (outer ring)
r1
0.3 mm
Chamfer dimension bore
r2
0.6 mm
Chamfer dimension outer ring
mass
0.146 kg
Product net weight
