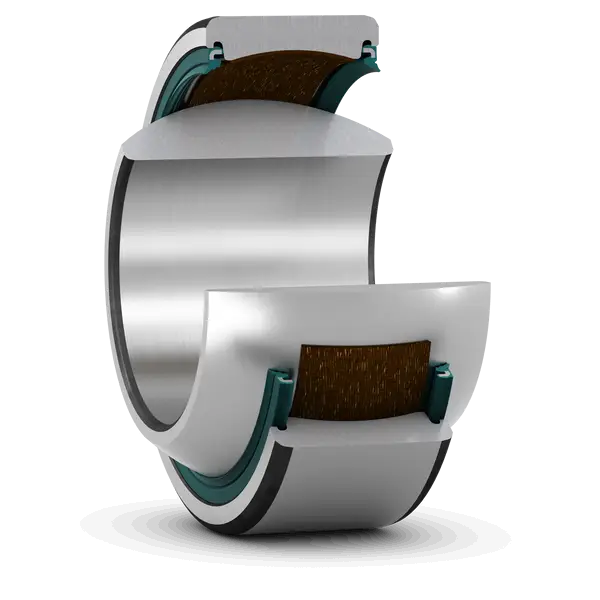

SKF GEH 80 TXE-2LS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
80.0 mm
Bore diameter
D
130.0 mm
Outside diameter
B
75.0 mm
Width
C
50.0 mm
Width outer ring
α
14.0 °
Angle of tilt
dk
115.0 mm
Raceway diameter inner ring
r1
1.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
3.6 kg
Product net weight
