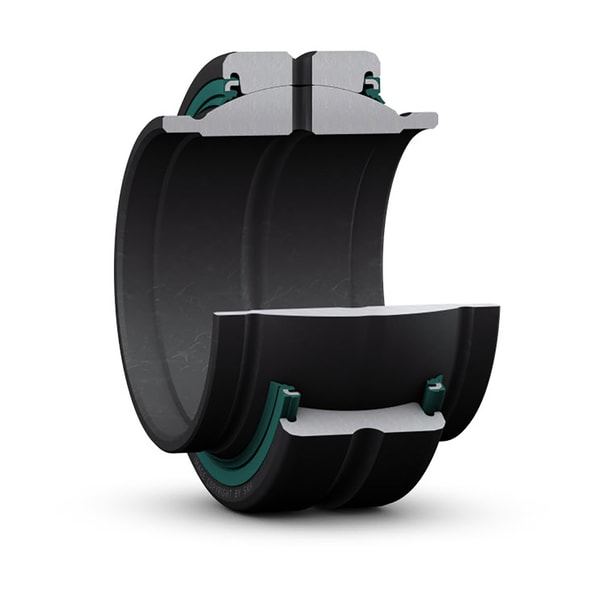

SKF GEM 30 ESX-2LS
SKF Explorer radial spherical plain bearing, virtually maintenance-free, sealed, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
30.0 mm
Width
C
18.0 mm
Width outer ring
α
4.0 °
Angle of tilt
dk
40.7 mm
Raceway diameter inner ring
d1
34.0 mm
Shoulder diameter cylindrical extension inner ring
b
3.1 mm
Width annular lubrication groove at outer ring
b1
3.2 mm
Width annular lubrication groove at inner ring
M
2.0 mm
Diameter lubrication hole (outer ring)
r1
0.3 mm
Chamfer dimension bore
r2
0.6 mm
Chamfer dimension outer ring
mass
0.15 kg
Product net weight
