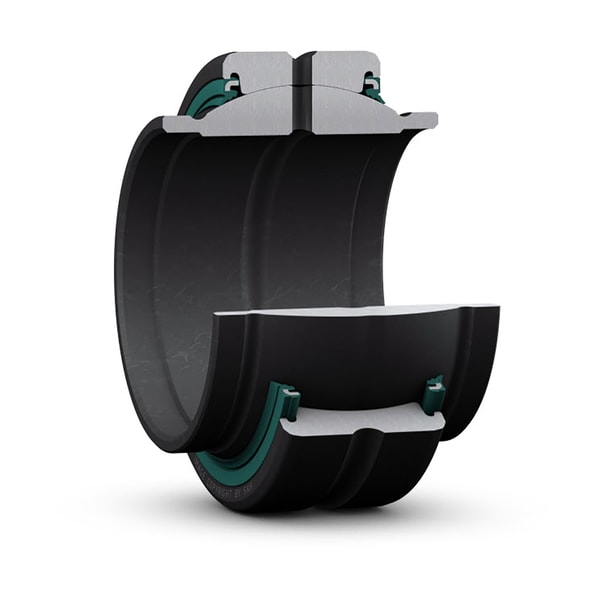

SKF GEM 50 ESX-2LS
SKF Explorer radial spherical plain bearing, virtually maintenance-free, sealed, metric sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
43.0 mm
Width
C
28.0 mm
Width outer ring
α
4.0 °
Angle of tilt
dk
66.0 mm
Raceway diameter inner ring
d1
57.0 mm
Shoulder diameter cylindrical extension inner ring
b
4.6 mm
Width annular lubrication groove at outer ring
b1
4.8 mm
Width annular lubrication groove at inner ring
M
3.0 mm
Diameter lubrication hole (outer ring)
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.562 kg
Product net weight
